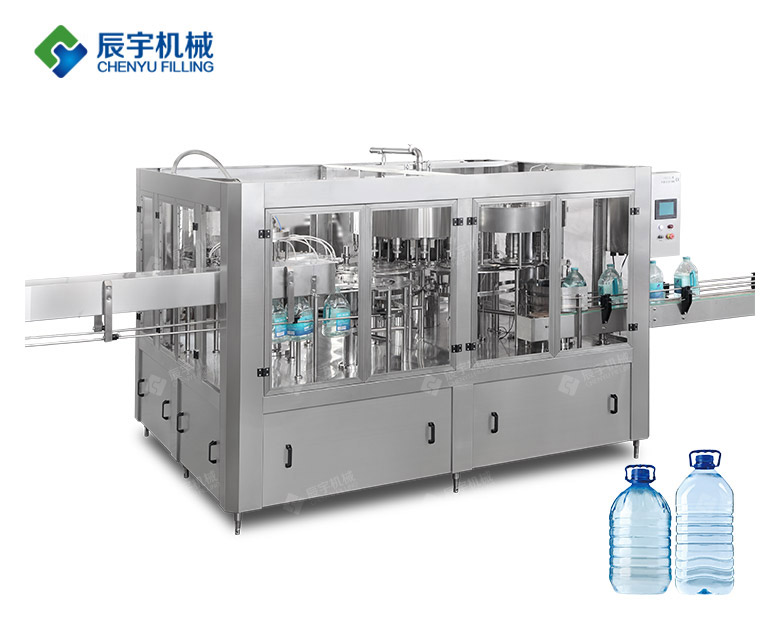

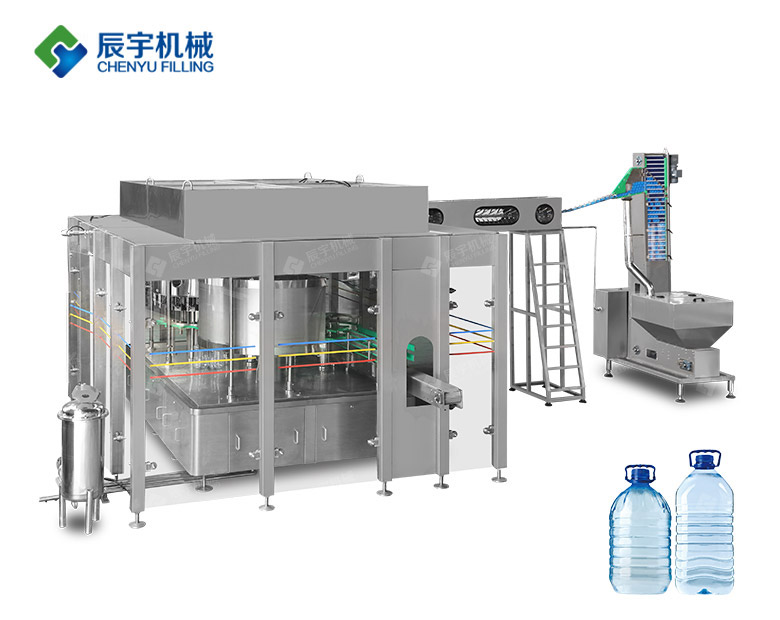

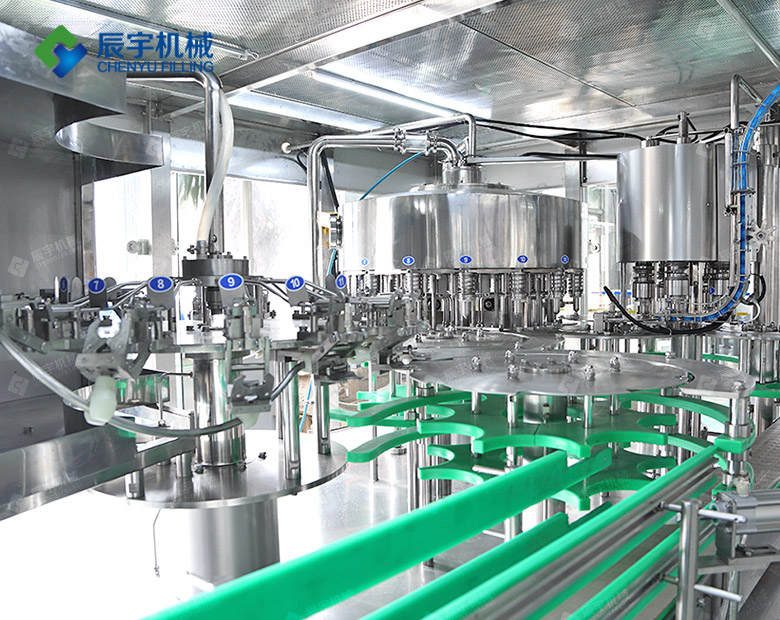

CGF16-16-5 Bottled Water Filling Machine 5Liters
Product overview
The bottled water filling machine is a production equipment for cleaning, filling and capping of 3L to 10L of pure water and mineral water. The bottled water filling machine is a production equipment for washing, filling and capping of 3L to 10L of pure water and mineral water.
CGF16-16-5 Bottled Water Filling Machine 5Liters video
CGF16-16-5 Bottled Water Filling Machine 5Liters Description
The bottled water filling machine is a production equipment for washing, filling and capping of 3L to 10L of pure water and mineral water. The water filling machine has introduced advanced and mature technology from European countries, has the advantages of high degree of automation, adaptability, convenient operation and good safety performance.
The water filling machine adopts the card bottleneck transmission technology to realize the processes of automatic rinsing, filling and capping, and the degree of automation is high; most of the electrical system parts of the water filling machine are made of foreign advanced products and parts in contact with liquid. All use high-quality stainless steel materials, with wear-resistant, stable, low failure rate and other
CGF16-16-5 Bottled Water Filling Machine 5Liters Detail

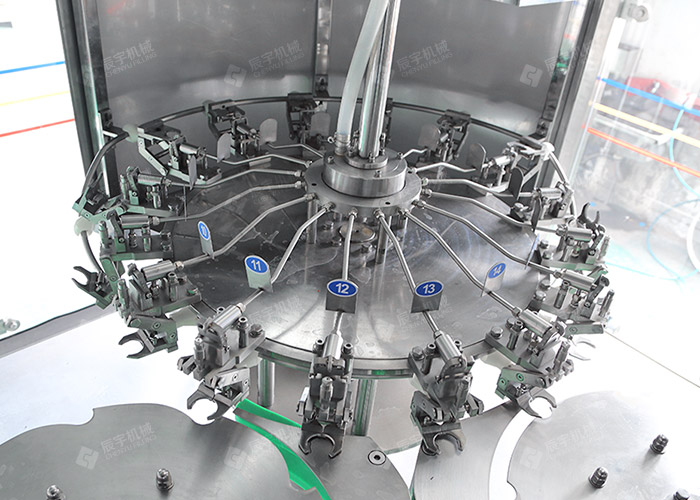

Washing Part
1.Into bottle way is air conveyor direct connection with Bottle dial
2.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
3.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4.304/316 stainless steel washing pump make the machine more durable

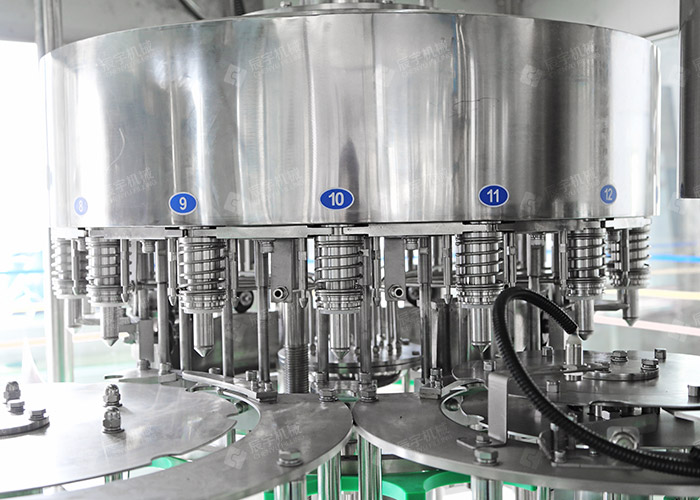

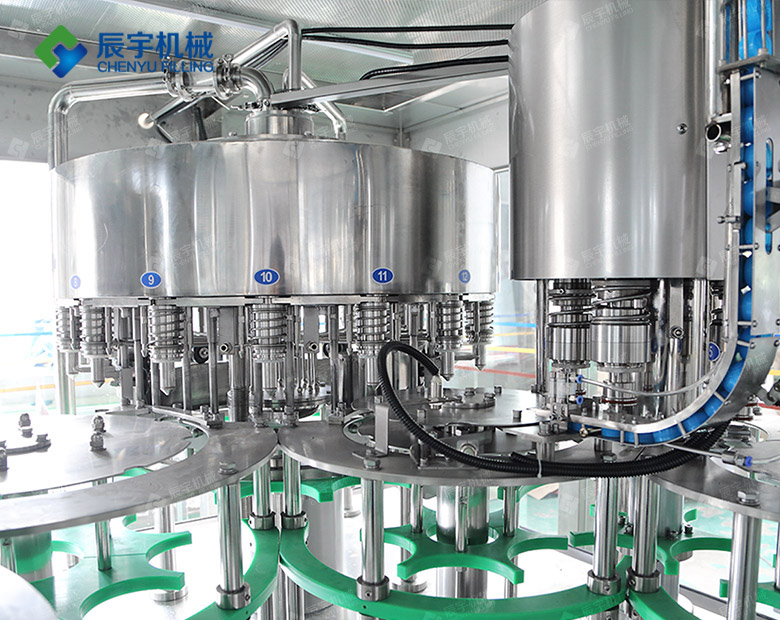

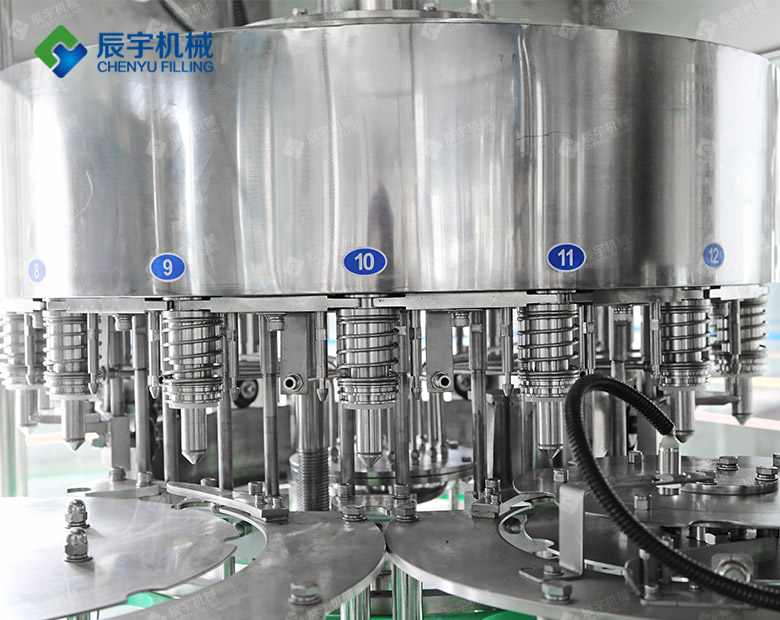

Filling Part
1.304/316 Stainless steel high precision filling nozzle
2.Filling volume adjustable in fine rank, same liquid level after filling
3.All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4.304/316 stainless steel filling pump

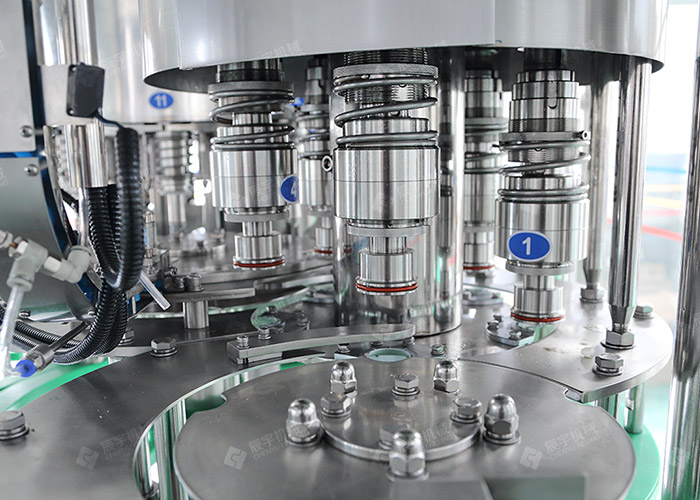

Capping Part
1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2. All 304/316 stainless steel construction
3. No bottle no capping
4. Automatic stop when lack of bottle
5.Capping effect is stable and reliable ,Defective rate ≤0.2%
CGF16-16-5 Bottled Water Filling Machine 5Liters Parameter
| Model | CGF?9-9-4 | CGF?12-12-4 | CGF?16-16-5 | CGF?20-20-5 | CGF?24-24-6 |
| Production Capacity 5000ml(B/H) | 1000 | 1000-1500 | 1500-2000 | 2000-2500 | 3000-4000 |
| Filling?Precision | ≤±5mm(Liquid?level?positioning) | ||||
| Suitable?Bottle?Shape | Round?or?square?shaped?bottle | ||||
| PET?bottle?(mm) | Bottle?Diameter:Ф120～Ф200?Bottle?Height:250mm～400mm | ||||
| Suitable?cap?standard | Plastic?Screw?Cap | ||||
| Rinsing?water?pressure(MPa) | 0.2～0.25 | ||||
| Rinsing?water?consumption(Kg/h) | 700 | 800 | 1500 | 1800 | 2500 |
| Air?source?pressure(MPa) | 0.4 | ||||
| Air?consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 |
| Total?Power(Kw) | 3.3 | 3.8 | 4 | 4.2 | 5.6 |
| Overall?Dimensions(L×W×H)(mm) | 2350×1900×2350 | 2500×2000×2400 | 2600×2200×2400 | 3500×2500×2400 | 4000×2850×2400 |
| Total?Weight(Kg) | 3000 | 3500 | 4000 | 5000 | 6500 |
