Product details

Product overview

Automatic palletizer machine is widely used in beverage, dairy, food, beer, petrochemical, medicine, etc., can satisfy different packaging production line of all kinds of product palletizing requirements.

Automatic Palletizer Machine video

Automatic Palletizer Machine Description

Automatic palletizer machine is widely used in beverage, dairy, food, beer, petrochemical, medicine, etc., can satisfy different packaging production line of all kinds of product palletizing requirements. There are a large number of professional R&D designers who provide reasonable robot palletizing project for customers. The turnkey palletizing solution contains production input, pallet output, robot choosing and hand holding design.

Meanwhile, we supplies perfect technical training, technical support and spare parts support. Rich experience after-sales service team provides reliable and comprehensive quality services.

Automatic palletizer is suitable for carton pallet, fully automatic servo motor control, suitable for all kinds of pile type and carton size, suitable for the big size pallet automatic palletizing.

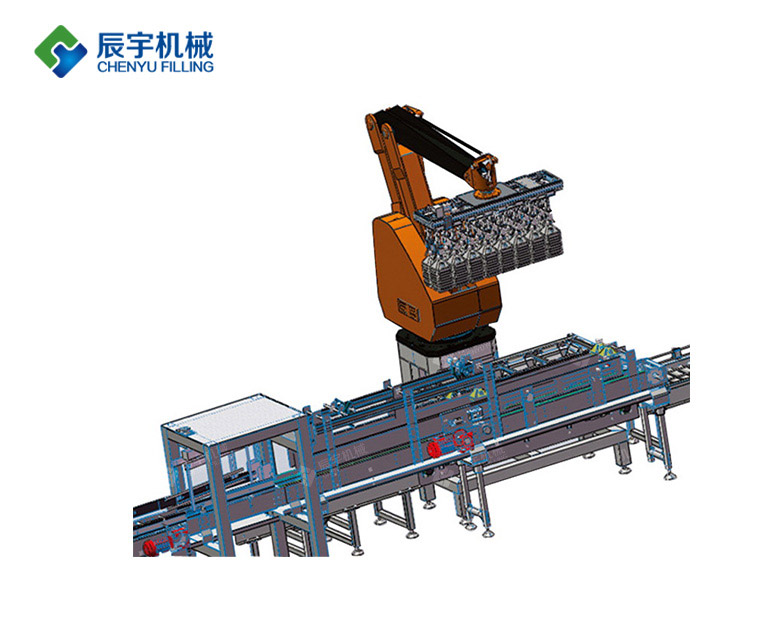

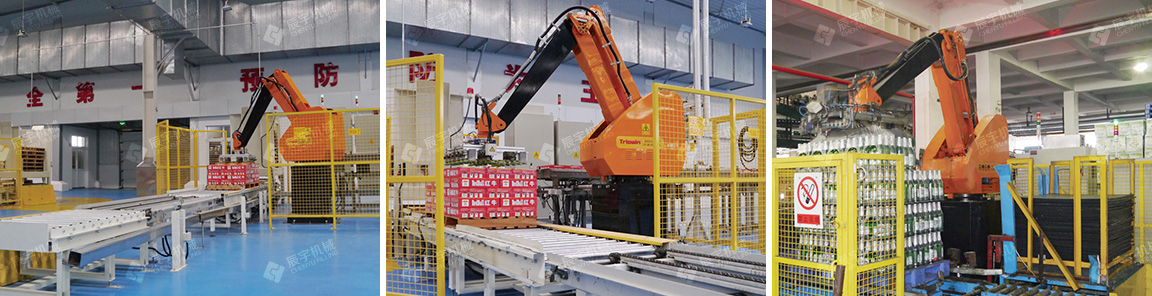

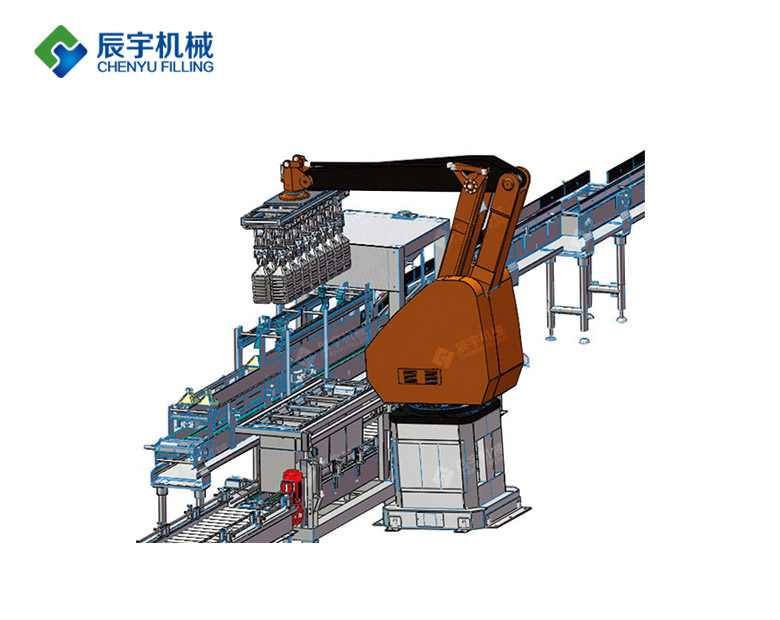

Automatic Palletizer Machine Detail

Automatic Palletizer Machine Parameter

Item Specification
Model TPR-200
Controlled?axis 4?axes?(A,B,C,D)
Installation Floor?mount
Motion?Range A(right,?lest) 330o
B(up,?down) 2000mm
C(front,?back) 1300mm
D(tongs) 350o
Max?load?capacity 200kg
Handing?capacity Max?1000?times/H
Drive?method Electric?servo?drive?by?AC?servo?motor
Repeatability ±?0.5mm
Tongs Power?source Compressed?air
Air?pressure 0.5Mpa
Air?consumption 280NL/min
Power 6.5KW
Weight 1100kg
